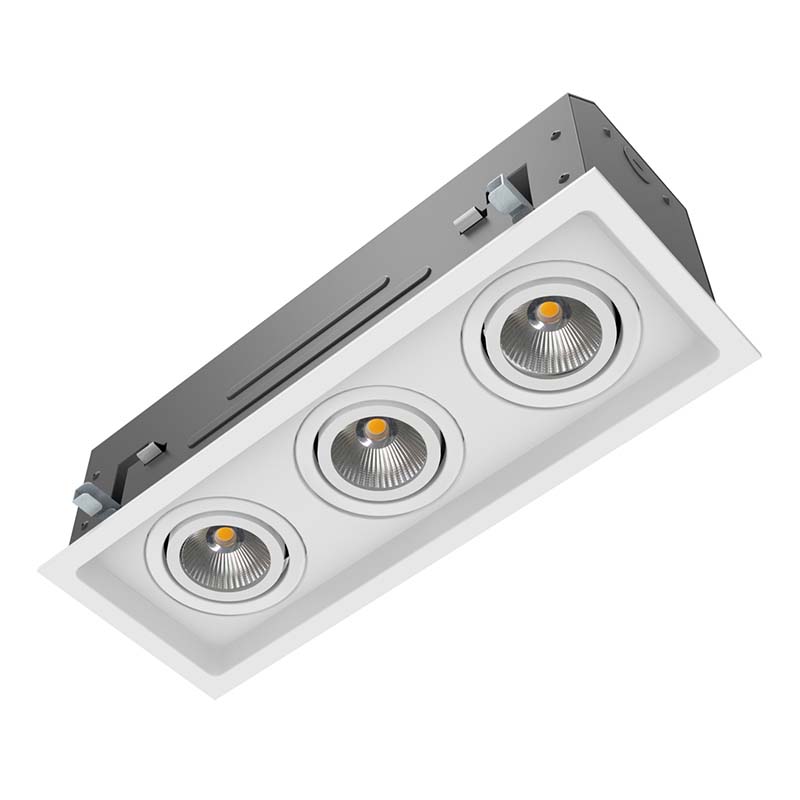

Residential 3-Lamp Remodel COB LED Mini Multiple Downlight
ITEM No.： G4013-E-R-COB
Series : LED Multiple Downlight
Light Source : COB
Input volt : 85-265V AC
CCT : 2700-6500k
Material : Gauge Steel
Trim Options : Trimmed or Trimless
Trim Baseplate : Open or Closed Design
Description
Mini LED Multiple Spots for remodeling and new construction applications for residential and commercial environments. The Multiple Spots are marketed as complete units including the housing and trim. Available as one, two and three-light configurations, each spot is individually adjustable and provides a 30-degree visual cutoff for glare control.
Features
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt, 360° horizontal rotation
Construction
Die-cast aluminum heat sink painted black. Trim and housing
are constructed of Gauge Steel.
Mounting
Available in 12.7mm-38.1mm thick ceilings
Fix the lamp by locking screw From below the ceiling
When Installing or removing the fixture, it won’t damage the ceilings
Light Source
High output COB LED Chips
Dimming
Dimmable to 10% with most brand dimmers.
| Input Voltage | AC 85-265V 50/60Hz |
| Rated Power | 10W/Lamp |
| Luminous Efficiency | 70 LM/W |
| Lamp | COB |
| Color Temperature | 2700-6500K |
| Material | Gauge Steel |
| Power Factor | > 0.98 |
| CRI | Ra80 / Ra90 |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
G401X-E-R-COB
|
liteharbor | 443 KB | 259 |
| 2 |
Multiple down light
|
liteharbor | 3 MB | 274 |
